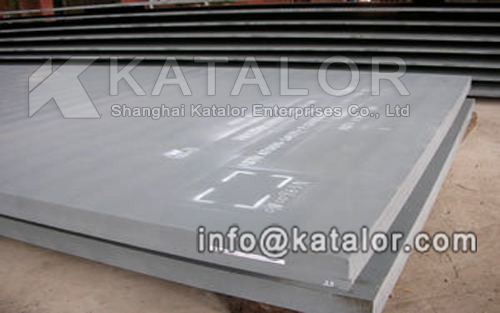

ABS EH36 Shipbuilding Steel Plate Technical Requirements
ABS (American Bureau of Shipping) has normal strength, high strength and extra high strength. ABS EH36 Steel Plate are almost exclusively utilized in the shipbuilding industry for the construction of structural parts of ships, barges and marine equipment.
ABS EH36 Chemical Composition
Grade |
C max |
Si max |
Mn |
P max |
S max |
Als min |
Ti max |
Cu max |
Cr |
Ni |
Mo |
Nb |
V |
N |
EH36 |
0.18 |
0.50 |
0.90-1.60 |
0.035 |
0.035 |
0.015 |
0.02 |
0.35 |
0.20 |
0.40 |
0.08 |
0.02-0.05 |
0.05-0.10 |
|
Grade |
Thickness |
Yield Strength |
Tensile Strength |
Elongation |
Impact Energy |
(mm) |
MPa (min) |
MPa |
% (min) |
(KV J) (min) |
|
|
|
|
|
-40 degree |
|
ABS EH36 |
8-240 |
355 |
490-620 |
21 |
34J |
ABS EH36 Specification:
Thickness: 7mm to 240mm,
Width: 1600mm to 4020mm
Length: 3000mm to 12000mm.
We can supply any size based on customer΄s requirements.
Technical Requirements and Additional Services:
First, High tension test
Second, Low temperature impacting test
Third, Certificated by ABS,LR,GL,BV,DNV,KR,NK,CCS,RINA
Fourth, Shot blasting and Painting, Cutting and welding as per end user’s demands
Katalor is the professional Chinese ABS EH36 shipbuilding steel plates supplier. we can supply you high quality steel plate with low price. if you need ABS EH36 shipbuilding steel plates, please contact us quickly.
