BV DH32 Shipbuilding Steel Plate Equivalent Steel Grade
BV (Bureau Veritas) rule has normal strength, high strength and extra high strength steel plate for shipbuilding, onshore/offshore platform and other marine engineering. BV DH32 Shipbuilding steel plates are mainly used for making the offshore oil drilling platform, the hull of ship building and ship repairing, the platform pipe joints and other components.
BV DH32 chemical composition in shipbuilding steel plate
|
Grade |
C max |
Si max |
Mn |
P max |
S max |
Als min |
Ti max |
Cu max |
Cr |
Ni |
Mo |
|
BV/DH32 |
0.18 |
0.50 |
0.90-1.60 |
0.035 |
0.035 |
0.015 |
0.02 |
0.35 |
0.20 |
0.40 |
0.08 |
Mechanical Property of BV/DH32 high strength
|
Grade |
Thickness |
Yield |
Tensile Strength |
Elongation |
Charpy V Notch Impact Test |
||
|
Degree |
Value 1 |
Value 2 |
|||||
|
BV/DH32 |
mm |
Min Mpa |
Mpa |
Min % |
-20 |
J |
J |
|
t≤50 |
315 |
440-590 |
22% |
22 |
31 |
||
|
50＜t≤70 |
315 |
440-590 |
22% |
26 |
38 |
||
|
70＜t≤150 |
315 |
440-590 |
22% |
31 |
46 |
||
|
Note: Value 1 is transverse impact test, Value 2 is longitudinal |
|||||||
Equivalent steel grade of BV/DH32
|
LR |
GL |
ABS |
CCS |
KR |
DN |
NK |
RINA |
|
LR DH32 |
GL-DH32 |
AB/DH32 |
CCS/DH32 |
KR/DH32 |
NV/DH32 |
NK/DH32 |
RI/DH32 |

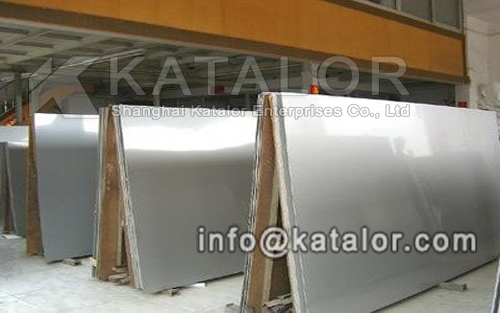

BV DH32 Shipbuilding Steel Plate Rolling Size
Thickness：3-200mm
Width：1200-4200mm
Length：5000-12000mm
Meanwhile, the size can be customized.
We are a trusted and reliable brand for our high quality and good manufacturing of BV DH32 Shipbuilding steel plates .Our company has been a manufacturer and exporter of BV Grade for decades, and has been sold all over the world with favorable price. As a responsible enterprise, we always stick to be your satisfying partner.
