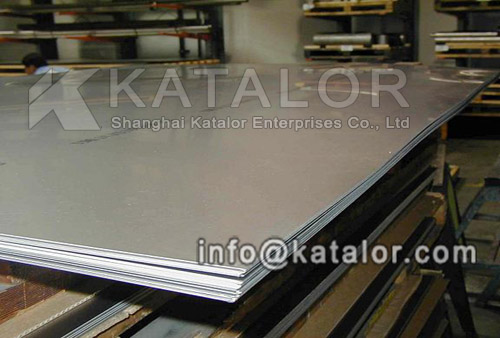

High Strength Q460 CDE Steel Plate Bend Test
Q460 CDE Steel Plate has excellent comprehensive properties and weld ability, the plates also have been successfully used as the major components of CCTV new site building which are acted by the maximum stress , as results, Q460 CDE Steel Plate is appreciated by customers.
Q460 CDE Steel Plate Chemical composition(wt%)
|
Grade |
C |
Si |
Mn |
P |
S |
Alt |
Cr |
Ni |
Nb |
V |
Ti |
Pcm |
Ceq |
|
Q460C |
≤0.2 |
≤0.55 |
1.0 |
≤0.035 |
≤0.035 |
≥0.015 |
≤0.7 |
≤0.7 |
0.015 |
0.02 |
0.008— |
≤0.29 |
≤0.50 |
|
Q460D |
≤0.030 |
≤0.030 |
|||||||||||
|
Q460E |
≤0.025 |
≤0.025 |
|||||||||||
|
Remarks: Ceq=C+Mn/6 + (Cr +V +Mo)/5+(Ni +Cu)/15 |
|||||||||||||
Mechanical property of Q460 CDE
|
Grade |
Thickness |
Tensile test (transverse) |
Impact test (lonitudinal) |
Through-thickness characteristics |
Bend test |
|||||||
|
Lower yield strength |
Tensile strength |
Elongation in 50mm A,% |
Yield ratio |
Quality class |
Temperature |
Impact energy |
Contraction |
Angel |
Diameter |
|||
|
Average value |
Individual value |
|||||||||||
|
Q460C |
16--35 |
≥440 |
550--720 |
≥20 |
≤83 |
C |
0 |
≥34 |
/ |
/ |
180 |
d=3a |
|
Q460D |
D |
-20 |
/ |
/ |
||||||||
|
Q460E |
E |
-40 |
/ |
/ |
||||||||
|
Q460-Z15 |
|
Ditto |
15 |
10 |
||||||||
|
Q460-Z25 |
25 |
15 |
||||||||||
|
Q460-Z35 |
35 |
25 |
||||||||||
|
Remarks: The yield strength value applies to the Rp 0.2, if the strength is not pronounced. |
||||||||||||
High Strength Q460 CDE Specification
Standard: AISI, ASTM, BS, DIN, GB, JI
Grade:q460
Type: Steel Plate
Length:200mm-12000mm
Thickness:8mm-800mm
Width:100mm-3800mm
We can supply any size based on customer's requirements.
Shanghai Katalor Enterprises Co., Ltd is a big complex combined steel stockist whose business related with trade, processing, storage and transportation. we are specialized in supplying Q460 CDE Steel Plate . We have the good quality and advanced equipment, our products meet the state standard, and also available for customers' requirement. If you have any need of High Strength Q460 CDE，please do not hesitate to contact us by email [email protected], we can do our best to help you!
