LR AH32 shipbuilding plate Additional Technical Services

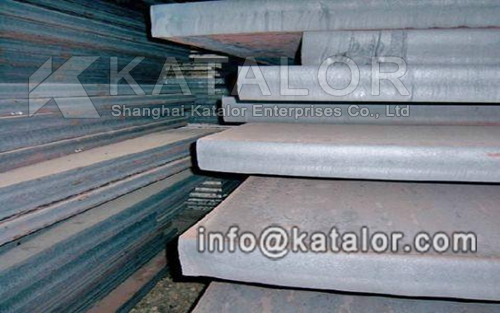

LR AH32 Shipbuilding steel plates are mainly used for making the hull of ship building and ship repairing, the offshore oil drilling platform. LR AH32 Shipbuilding steel plate also can be used for producing container and bulk cargo vessels.
LR AH32 Chemical Composition
|
Grade |
C max |
Si max |
Mn |
P max |
S max |
Als min |
Ti max |
Cu max |
Cr |
Ni |
Mo |
|
LR/AH32 |
0.18 |
0.50 |
0.90-1.60 |
0.035 |
0.035 |
0.015 |
0.02 |
0.35 |
0.20 |
0.40 |
0.08 |
| LR/AH32 high strength property | |||||||
|
Grade |
|
Mechanical Property |
Charpy V Impact Test |
||||
|
Thickness |
Yield |
Tensile |
Elongation |
Degree |
Energy 1 |
Energy 2 |
|
|
LR/AH32 |
mm |
Min Mpa |
Mpa |
Min % |
0 |
J |
J |
|
t≤50 |
315 |
440-590 |
22% |
20 |
31 |
||
|
50＜t≤70 |
315 |
440-590 |
22% |
26 |
38 |
||
|
70＜t≤100 |
315 |
440-590 |
22% |
31 |
46 |
||
|
Note: Energy 1 is transverse impact test, Energy 2 is longitudinal |
|||||||
LR AH32 Shipbuilding Plate Additional Technical Services
LR Grade AH32 marine steel plate from Shanghai Katalor Enterprises which including Heat treatment, Z-test, Ultrasonic Examination, Low temperature impacting test, and cutting welding into special pieces for end users
BVD Shipbuilding Steel Delivery and Packing Terms
Trade Terms: FOB, CFR, CIF
Payment Terms: T/T, L/C at sight
Packaging Details: Standard Package or as the customers' requirements
Delivery Detail:20-45 days
Port: Any port of China
We have our own processing factory and the pre- treatment factory, pre-treatment for shipbuilding steel (ball blasting , painting).Surface pretreatment line technical parameters on steel plates and profile steel. And we can also make the customers enjoy our other pre-treatment services, like cutting, welding, drilling holes, galvanizing by the lowest cost price. We are a professionalLR AH32 steelexporter and Stockist in china. Any need in LR AH32 Shipbuilding steel plate, please feel free to contact us by email or calling to us by email [email protected]
