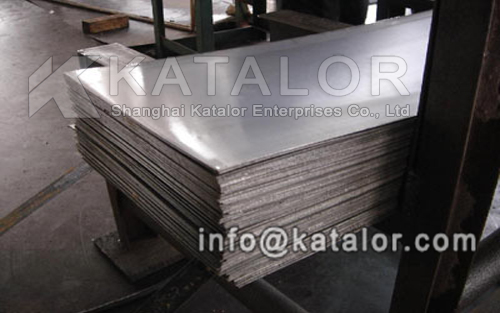

LR FH32, LR FH32 Shipbuilding Steel Plate Delivery Details
LR FH32 steel is a kind of hot rolled high tensile strength steel. LR FH32 steel has normal strength, high strength and extra high strength steel plate for Shipbuilding Project and Ocean Offshore Structural Project.
LR FH32 Chemical Composition
Grade |
C max |
Si max |
Mn |
P max |
S max |
Als min |
Ti max |
Cu max |
Cr |
Ni |
Mo |
|
LR/FH32 |
0.18 |
0.50 |
0.90-1.60 |
0.035 |
0.035 |
0.015 |
0.02 |
0.35 |
0.20 |
0.40 |
0.08 |
LR FH32 Mechanical Property
Grade |
Thickness(mm) |
Min Yield (Mpa) |
Tensile(MPa) |
Elongation(%) |
Min Impact Energy |
|
|
FH32 |
8mm-50mm |
Min 315Mpa |
440-590Mpa |
22% |
-60 |
34J |
|
51mm-70mm |
Min 315Mpa |
440-590Mpa |
22% |
-60 |
NA |
|
|
71mm-100mm |
Min 315Mpa |
440-590Mpa |
22% |
-60 |
NA |
|
LR FH32 Equivalent Steel Grade
Equivalent steel grade of LR/FH32 |
|||||||
|
DNV |
GL |
ABS |
BV |
CCS |
NK |
KR |
RINA |
|
NV F32 |
GL-F32 |
AB/FH32 |
BV/FH32 |
CCS/F32 |
K F32 |
R F32 |
RI/F32 |
LR FH32 Shipbuilding Steel Plate Delivery Details
Trade Terms: FOB, CFR, CIF
Payment Terms: T/T, L/C at sight
Packaging Details: Standard Package or as the customers' requirements
Delivery Detail:20-45 days
Port: Any port of China
We are a trusted and reliable brand for our high quality and good manufacturing of LR FH32 steel .Our company has been a manufacturer and exporter of LR Grade for decades, and has been sold all over the world with favorable price. As a responsible enterprise, we always stick to be your satisfying partner.
