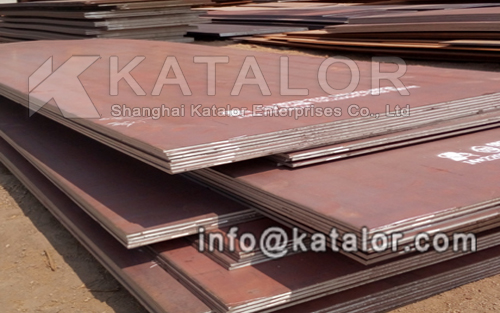

LR Grade E Shipbuilding Steel Plate Density
LR Grade E shipbuilding steel has good toughness properties, higher strength, strong corrosion-resistance. LR Grade E Shipbuilding Steel Plate are used in manufacturing hull, maritime oil extraction drilling platform, platform tube junction and other structural components.
LR Grade E Shipbuilding Steel Plate Chemical Composition
Grade |
Chemical Composition(%) |
||||
|
C |
Mn≥ |
Si |
P |
S |
|
|
LR E |
0.18 |
0.70 |
0.10-0.35 |
0.035 |
0.035 |
LR Grade E Shipbuilding Steel Plate Mechanical Property
LR Grade E Shipbuilding steel plate |
|||||||
|
Grade |
|
Mechanical Property |
Charpy V Impact Test |
||||
|
Thickness |
Yield |
Tensile |
Elongation |
Degree |
Energy 1 |
Energy 2 |
|
|
LR-E |
mm |
Min Mpa |
Mpa |
Min % |
-20 |
J |
J |
|
t≤50 |
235 |
400-520 |
22% |
20 |
27 |
||
|
50＜t≤70 |
235 |
400-520 |
22% |
24 |
34 |
||
|
70＜t≤100 |
235 |
400-520 |
22% |
27 |
41 |
||
|
Note: Energy 1 is transverse impact test, Energy 2 is longitudinal |
|||||||
LR Grade E Shipbuilding Steel Plate Specification
Thickness:2mm-350mm
Width:1200mm-4200mm
Length:3000mm-18000mm
By the way, the size can be customized
*Wespecializeinthisfeildformorethan10years |
|
*Fastresponseinreply |
|
*Largestockandwidlyproducts |
|
*Goodsaleswithreasonableprice. |
|
*Goodqualitymaterials. |
|
*Fastleadtime. |
As a very long history company, Shanghai Katalor Enterprises had enough experience about the quality, price for these goods in China Market. we are a professional LR Grade E shipbuilding steel stockist and supplier. We can supply different product type and grades of LR Grade shipbuilding steel. If you want to get the price, please do not hesitate tocontact us.
