Q355NH Atmospheric corrosion resistant steel Application

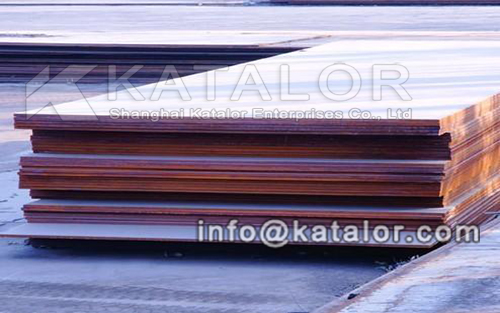

Q355NH atmospheric corrosion resiting structural steel plate is widely used to building shipping containers and offshore containers,such as Schedule waste storage container,Weather Shelters,Tool boxes,Workshop containers and so on
|
Thickness (mm) |
||||
|
Q355NH |
≤ 16 |
> 16 ≤ 40 |
> 40 ≤ 60 |
>60 |
|
Yield strength (≥Mpa) |
355 |
345 |
335 |
325 |
|
Tensile strength (Mpa) |
490-630 |
|||
|
Main chemical elements composition of Q355NH |
|||||||
|
C |
Si |
Mn |
P |
S |
Cu |
Ni |
Cr |
|
0.16 |
0.50 |
0.50-1.50 |
0.030 |
0.030 |
0.25-0.55 |
0.65 |
0.40-0.80 |
Q355NH Application:
Q355NH steel has a protective layer of rust resistance to atmospheric corrosion, it can be used in the manufacture of vehicles, bridges, towers, containers and other steel low-alloy structural steel. Compared with carbon steel, Q355NH steel has better corrosion resistance in the atmosphere. Compared to stainless steel, only trace amounts of alloying elements, alloys such as weathering resisting steel elements of total phosphorus, copper, chromium, nickel, molybdenum, niobium, vanadium, titanium, etc. is only a few percent.
Mainly for railway, vehicles, bridges, towers and other exposed steel used in the atmosphere. Q355NH can also be used in the manufacture of containers, rolling stock, oil derrick, harbor construction, oil platforms and oil equipment chemical containers and other structures containing hydrogen sulfide corrosion medium.
Q355NH Specification:
Cold-rolled sheet: Thickness: 2-5mm Width:1000mm Length: 2000mm
Hot-rolled sheet: Thickness:6-80mm Width: 210-610mm
Length: We can supply any length based on the customer's requirement
The above information is provided by the Shanghai katalor, such as the need for more Q355NH material information, please contact the Shanghai katalor for more information.
