S355J2G1W（1.8963） china suppliers

Posted:2016-08-10 22:31:37

S355J2G1W is very popular steel grades in weathering resistant steel in the European standard .Their resistant performance is better than the common welding structural steel.

S355J2G1W steel Chemical analysis

Grades	C max	Si max	Mn	P max	S max.	Cu max	Cr max	Ni max	V max	Nb max	Al min
S235J2G1W	0.16	0.50	0.50-1.50	0.035	0.035	0.25-0.55	0.40-0.80	0.65	0.02-0.12	0.015-0.060	0.02

S355J2G1W steel Mechanical properties

Grade	Min Yield strength in different thickness						Min tensile strength in different thickness			Elongation in different thickness
	≤ 16	> 16 ≤40	> 40 ≤63	> 63 ≤80	> 80 ≤100	> 100 ≤150	≤ 3	> 3≤ 100	> 100≤150	≤1.5	> 2≤2.5	> 2.5≤3	> 3 ≤40	> 40 ≤63	> 63 ≤100	> 100≤150
S355J2G1W	355	345	335	325	315	305	510-680		490-630	15	17	18	22	21	20	19

S355J2G1W steel Application
S355J2G1W steel is widely applied for mining equipment such as mine fans, earth moving buckets, trailers and large road vehicles, drill rings, cranes, excavators, bridges and other high strength components require superior toughness.

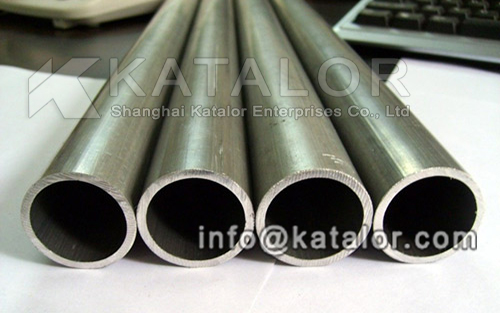

S355J2G1W steel is a structural weathering steel adopts EN10155 standard, also called atmospheric corrosion resistant steel.shanghai katalor can provide S355J2G1W Steel Coils, S355J2G1W steel plate, S355J2G1W steel channel, S355J2G1W steel bar S355J2G1W steel tube ect..
