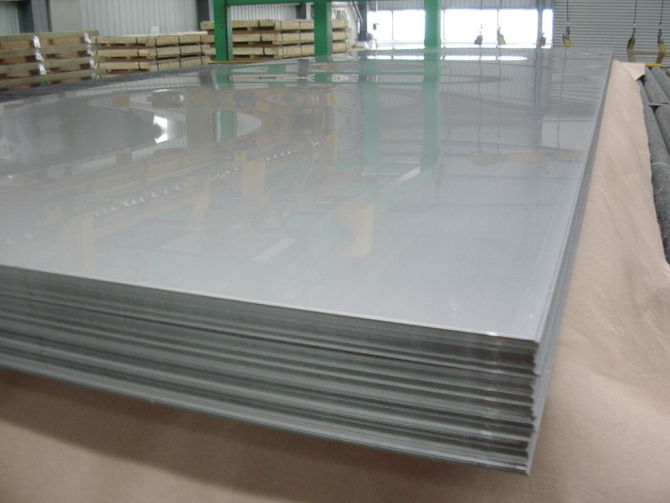

A299 Grade B SA299 Grade B A299GrB boiler pressure vessel steel plate
A299 /A299M boiler and others pressure vessels steel plate have two kinds :A299 Grade A and A299 Grade B.we can now produce products include steel coil, sheet, plate,round bar, square steel, steel wire, steel pipe, forgings, other...
ASTM A299 Grade B boiler steel plate with minimum yield strength above 325 Mpa,and tensile strength within 550-690 Mpa. This kind of steel are used in Pressure Vessel,Boiler,Storage Tanks and Heat Exchanger in Oil,Gas Project.
Dimension we mainly supply:
Thickness: 6MM to 300MM,Width: 1500mm to 4050mm,Length: 3000mm to 15000mm
SA-299 Grade B Range of products
| Product type | Products | Dimension | Processes | Deliver Status |
|---|---|---|---|---|
| Plates / Sheets | Plates / Sheets | 0.08-200mm(T)*W*L | Forging, hot rolling and cold rolling | Annealed, Solution and Aging, Q+T, ACID-WASHED, Shot Blasting |
| Steel Bar | Round Bar, Flat Bar, Square Bar | Φ8-1200mm*L | Forging, hot rolling and cold rolling, Cast | Black, Rough Turning, Shot Blasting, |
| Coil / Strip | Steel Coil /Steel Strip | 0.03-16.0x1200mm | Cold-Rolled & Hot-Rolled | Annealed, Solution and Aging, Q+T, ACID-WASHED, Shot Blasting |
| Pipes / Tubes | Seamless Pipes/Tubes, Welded Pipes/Tubes | OD:6-219mm x WT:0.5-20.0mm | Hot extrusion, Cold Drawn, Welded | Annealed, Solution and Aging, Q+T, ACID-WASHED |
Equivalent steel grade of A299 Grade B
|
Equivalent steel grade of A299 Grade B |
||||||||
|
Europe |
Belgium |
Germany |
France |
Italy |
Sweden |
India |
Japan |
U.K |
|
|
|
T St E255 |
|
Fe 360 2 KG |
|
|
|
|
Related Grade: A299 Grade A, SA299 Grade A, A299 GR.B, SA299 GR.B
ASME SA299 Gr.B Steel chemical composition :
| Grade | The Element Max (%) | |||||
| C | Si | Mn | P | S | Mo | |
| SA299 GR.A | 0.28-0.30 | 0.13-0.45 | 0.84 -1.62 | 0.035 | 0.035 | - |
| SA299 GR.B | 0.28-0.30 | 0.13-0.45 | 0.84 -1.62 | 0.035 | 0.035 | - |
Carbon Equivalent: Ceq = 【C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15】%
