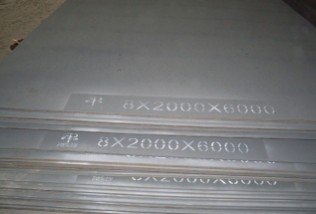

ABS EH36 shipbuilding steel plate,ABS Grade EH36 plate
ABS (American Bureau of Shipping) rule has normal strength, high strength and extra high strength steel plate for shipbuilding, onshore/offshore platform and other marine engineering. Steel plate ABS EH3(EH36,ABS/EH36,ABS GRADE EH36 ) is mainly used to make ship cranes owning to its alloy elements and high strength property
Shanghai katalor is specialized in the ship steel plate and supply ABS Grade EH36 steel sheets in superior quality.We also cooperate with other classification society, such as Certificate ABS, DNV, BV, ABS, GL, CSS, KR, NK, RINA, TUV, CE, ISO, and so on.
Chemical Composition of AB/EH36 high strength
| Grade | The Element Max (%) | ||||||
| C | Si | Mn | P | S | Al | N | |
| AB/EH36 | 0.18 | 0.1-0.50 | 0.90-1.6 | 0.035 | 0.035 | 0.015 | |
| Nb | V | Ti | Cu | Cr | Ni | Mo | |
| 0.02-0.05 | 0.05-0.10 | 0.02 | 0.35 | 0.2 | 0.4 | 0.08 | |
Crack Sensitivity: Pcm = (C+Si/30+Mn/20+Cu/20+Ni/60+Cr/20+Mo/15+V/10+5B)%
Carbon Equivalent: Ceq = 【C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15】%
SPECIFICATION of AB/EH36 high strength
Thickness: 6mm to 240mm, Width: 1500mm to 4020mm Length: 3000mm to 27000mm.
The similar shipbuilding steel grade ABS EH36 in steel stand ASTM A131/A131M is mainly used on offshore and oil platform project. Actually A131 Grade EH36 owned the same chemical composition and mechnical property as ABS Grade EH36 shipbuilding steel plates.please contact us for more information about EH36 shipbuilding steel plate , and let us know your specification, the best price will be quoted in shortest time.
