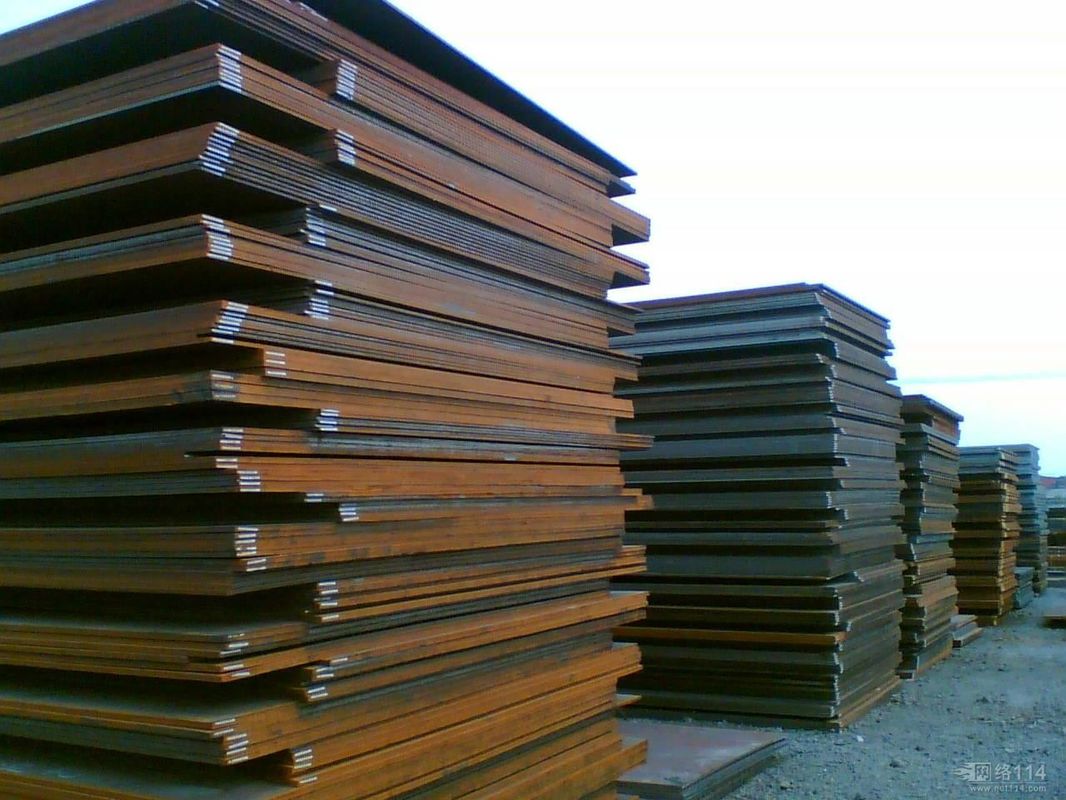

ABS Grade EH32 shipbuilding steel plate and sheet
ABS Grade EH32 shipbuilding steel plate which are rolled under Normalised or Thermal Mechanical Control Processing.ABS EH32 with good toughness properties,higher strength.ABS EH32 are mainly used to contribute hull of ships and the cranes of break bulker and vessels in low temperature oceans.It is mainly used to Shipbuilding Project and Ocean Offshore Structural Project.
Chemical composition for ABS Grade EH32 ship steel (Heat Analysis Max%)
| Main chemical elements composition of ABS Grade EH32 | ||||||
| C | Si | Mn | P | S | Al (acid) min. | Nb |
| 0.18 | 0.10-0.50 | 0.90-1.60 | 0.035 | 0.035 | 0.015 | 0.02-0.05 |
| V | Ti | Cu | Cr | Ni | Mo | |
| 0.05-0.10 | 0.02 | 0.35 | 0.20 | 0.40 | 0.08 | |
The mechanical properties at ambient temperature for quenched and tempered steel plate
|
Grade |
Thickness(mm) |
Min Yield (Mpa) |
Tensile(MPa) |
Elongation(%) |
Min Impact Energy |
|
|
EH32 |
8mm-50mm |
Min 315Mpa |
440-590Mpa |
22% |
-40 |
34J |
|
51mm-70mm |
Min 315Mpa |
440-590Mpa |
22% |
-40 |
38J |
|
|
71mm-100mm |
Min 315Mpa |
440-590Mpa |
22% |
-40 |
46J |
|
|
The min impact energy is longitudinal energy |
||||||
we can roll ABS Grade EH32 shipbuilding steel plate till 350 millimeters in advantage of our superb technical supports from our excellent engineers.Our heavy shipbuilding steel plate ABS Grade EH32 were used on many cranes projects in many famous shipyards all over the world.If you are looking for ABS Grade EH32 shipbuilding steel plate,please contact us by email [email protected], we will reply you as soon as possiable!
