ASME SA516 Grade 60 / ASTM A516 Grade 60
The A516 / SA516 standard, its full name is “Standard Specification for Pressure Vessel Plates, Carbon Steel, for Moderate.It is used extensively by industrial boiler and pressure vessel fabricators who provide manufacturing support to the oil, gas and petrochemical industry.
Boiler steel supplied to both the ASTM and ASME standard are available for supply on a global basis form specialist steel stockholders. The main grades of steel suitable for use in the fabrication of industrial boilers include:ASTM A516 Grade 60,ASTM A516 Grade 65,ASME SA516 Grade 60,ASME SA516 Grade 65

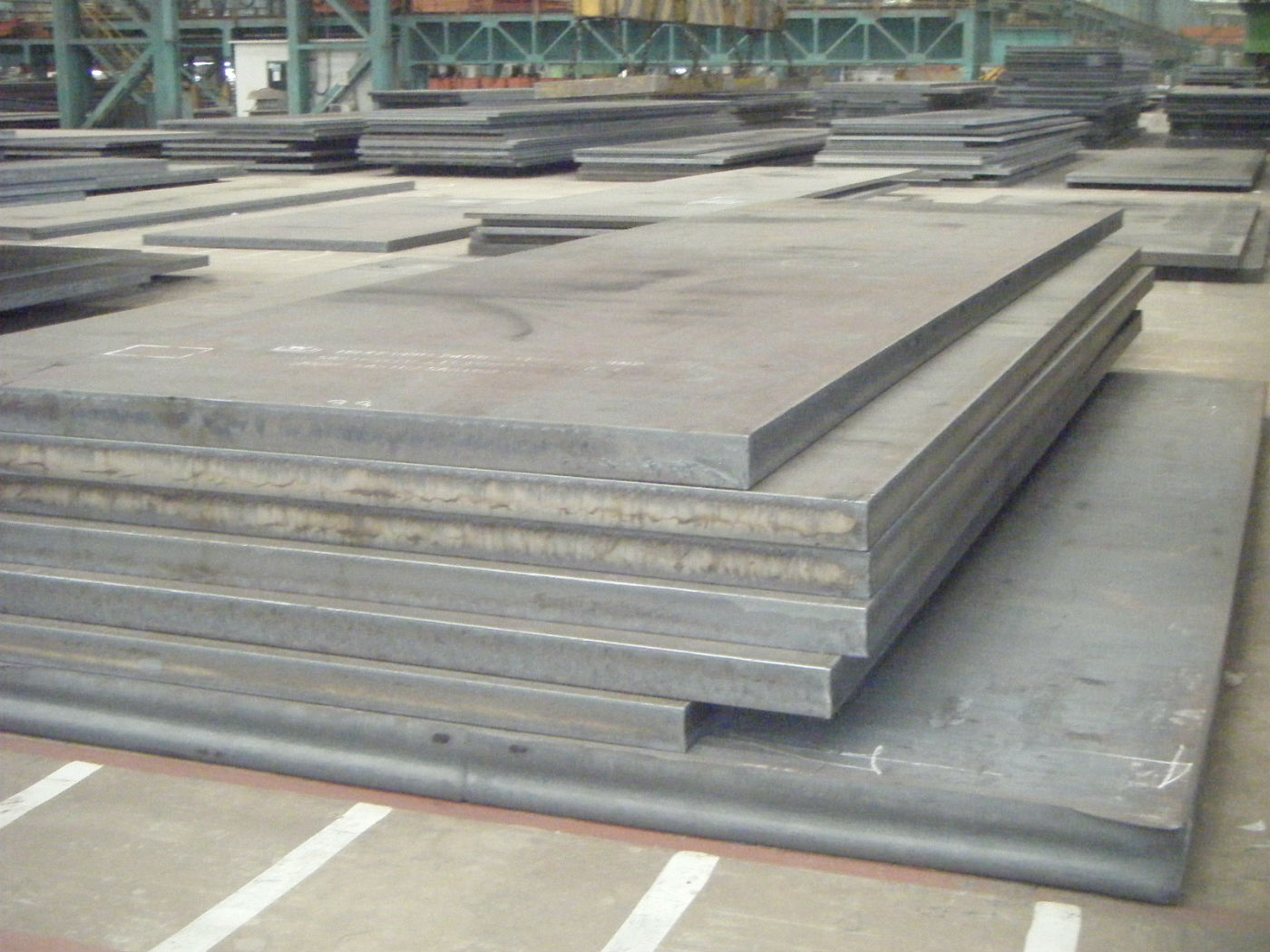

we keep a healthy stock of ASTM A516 Grade 60 carbon steel plates,Our steel plates are of high quality and if you check summary the sample Mill Test Certificate on the test certs page you can see that the standard requirements are comfortably exceeded.
Chemical Composition of ASTM A516 Grade 60
| Carbon (C) | % | Manganese (Mn) | % | Phosphorus (P) | % |
| 12.5mm or less 12.5 - 50mm 50 - 100mm 100 - 200mm > 200mm |
0.21 0.23 0.25 0.27 0.27 |
12.5mm or less • Heat Analysis : • Product Analysis : Over 12.5mm • Heat Analysis : • Product Analysis : |
0.6-0.9 0.55-0.98 0.85-1.20 0.79-1.30 |
(max) | 0.035 |
| Sulphur (S) | % | Silicon (Si) | % | ||
| (max) | 0.035 | • Heat Analysis : • Product Analysis : |
0.15-0.40 0.13-0.45 |
||
(Maximum values unless stated otherwise)
|
Equivalent steel grade of A516 grade 60 |
|||||||
|
Europe |
Belgium |
Germany |
France |
Italy |
Sweden |
India |
Japan |
|
|
|
E St E315 |
|
Fe 460-2-KG |
SS29,12,01 |
|
|
To find out more about ASTM A516 Grade 60 and to receive a competitive quotation for the supply of this material or more stock steel plates in pressure vessel steel plate please contact us by email or chat with our liveperson!
