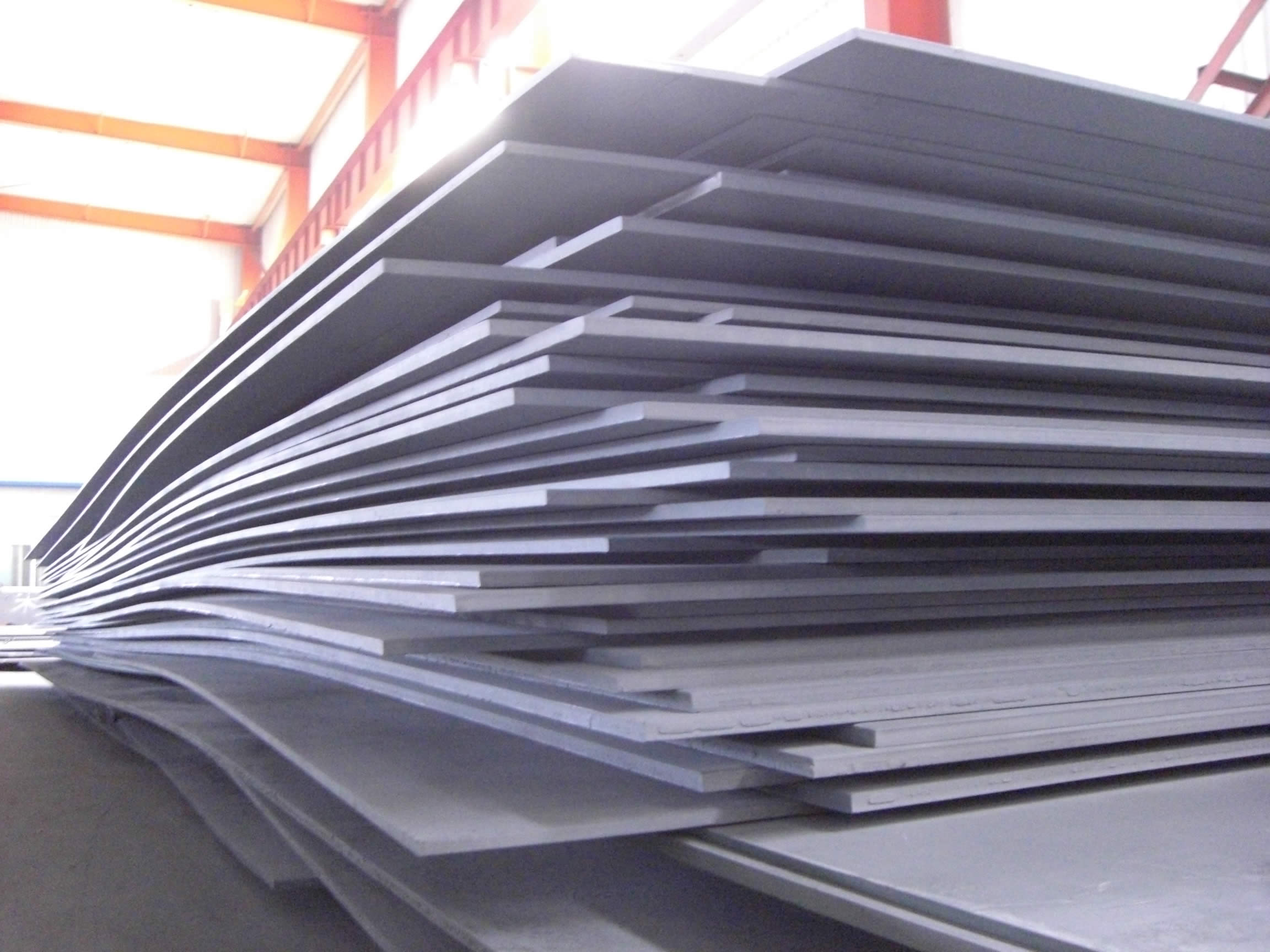

ASTM A387GR11CL2 Pressure Vessel And Boiler Steel Plate
A387 Grade 11 Class 2 is a chromium molybdenum alloy steel plates, A387 Grade 11 Class 2 is used in a variety of industries and is highly effective, particularly in the oil, gas and chemical industry, where liquids and gases are often stored at high temperature.our ASTM A387 Grade 11 Class 2 and ASME SA387 Grade 11 Class 2. Plates can also be supplied cut to size or flame cut to specific shapes as your needs.
our A387 GRADE 11 PLATES EX-STOCK
- Thickness: 8 – 60 mm
- Width Up to 3 metres wide
- Length: up to 12 metres Long
A387 Gr.11 CL.2Chemical Composition
A387 Gr.11 CL.2Chemical Composition |
|||||||
Grade |
The Element Max (%) |
||||||
|
C |
Si |
Mn |
P |
S |
Cr |
Mo |
A387 Gr.11 Cl.2 |
0.04-0.17 |
0.44-0.86 |
0.35-0.73 |
0.035 |
0.035 |
0.94-1.56 |
0.40-0.70 |
Carbon Equivalent: Ceq = 【C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15】%
The following requirements and testing procedures (which are not mandatory) are considered suitable for Chrome Molybdenum steel:
- Vacuum treatment
- Product Analysis
- Additional Tension Test
- Charpy V-Notch Impact Test
- Drop Weight Test
- High Temperature Tension Test
- Ultrasonic Examination
- Magnetic Particle Examination
We Supply Our sa 387 grade 11 class 2 Steel Plate to various countries like Saudi arabia, Kuwait, Qatar, Oman, Yemen, UAE, Iran, Turkey, etc.and if you need this kind of steel products,please contact us by email ,we will give you the best service and price ,hope have a Good partnership with you!
