Astm a516 grade 65,ASTM A516 Gr. 65 Boiler steel plate
ASTM A516 Grade 65 boiler steel plate owned a higher yield strength and tensile strength comparing with boiler steel plate .It is used extensively by the boiler and pressure vessel fabricators who provide manufacturing support to the petrochemical, oil and gas industries.
.Related Grade: A516 Grade 55 | A516 Grade 60 |A516 grade 70
The chemical and mechanical requirements of A516 / SA516 are very simple and these are listed below
| Main chemical elements composition of A516 Grade 65 | |||||
| Thickness(mm) | C | Si | Mn | P | S |
| T≤12.5 | 0.24 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
| 12.5<T≤50 | 0.26 | ||||
| 50<T≤100 | 0.28 | ||||
| 100<T≤200 | 0.29 | ||||
| T>200 | 0.29 | ||||
A516 Grade 65 Mechanical Property
|
Grade |
|
A516 Grade 65 Mechanical Property |
||
|
Thickness |
Yield |
Tensile |
Elongation |
|
|
A516 grade 65 |
mm |
Min Mpa |
Mpa |
Min % |
|
6-40 |
240 |
450-585 |
23% |
|
|
40-100 |
240 |
450-585 |
19% |
|

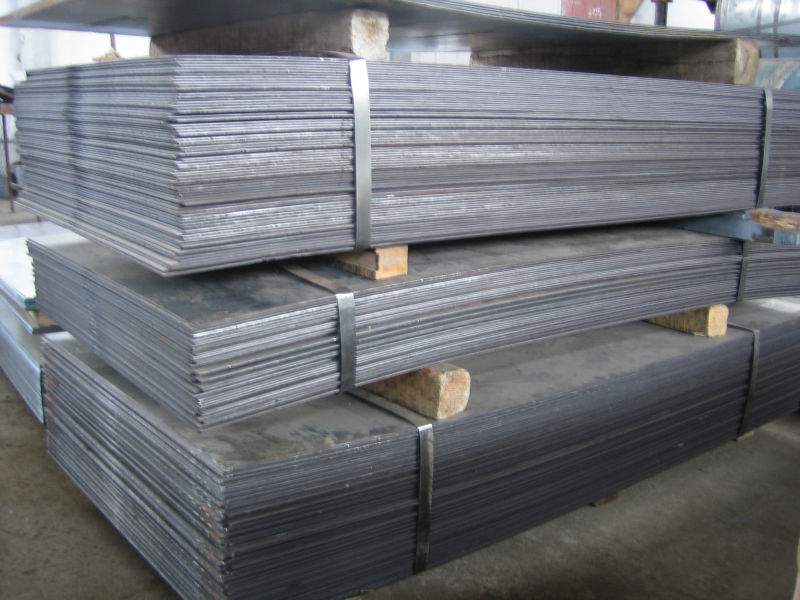

we stock ASTM A516 Grade 65 carbon steel plates which come with mill certification in compliance with EN10204 3.1 or EN10204 3.2. we are Professional in steel knowledge for guanrantee steel property and Closest relationships with china national mills for guanrantee delivery time and even delivery in advance.if you need this kind of steel ,please contact us for more information,we can give you the best service!
