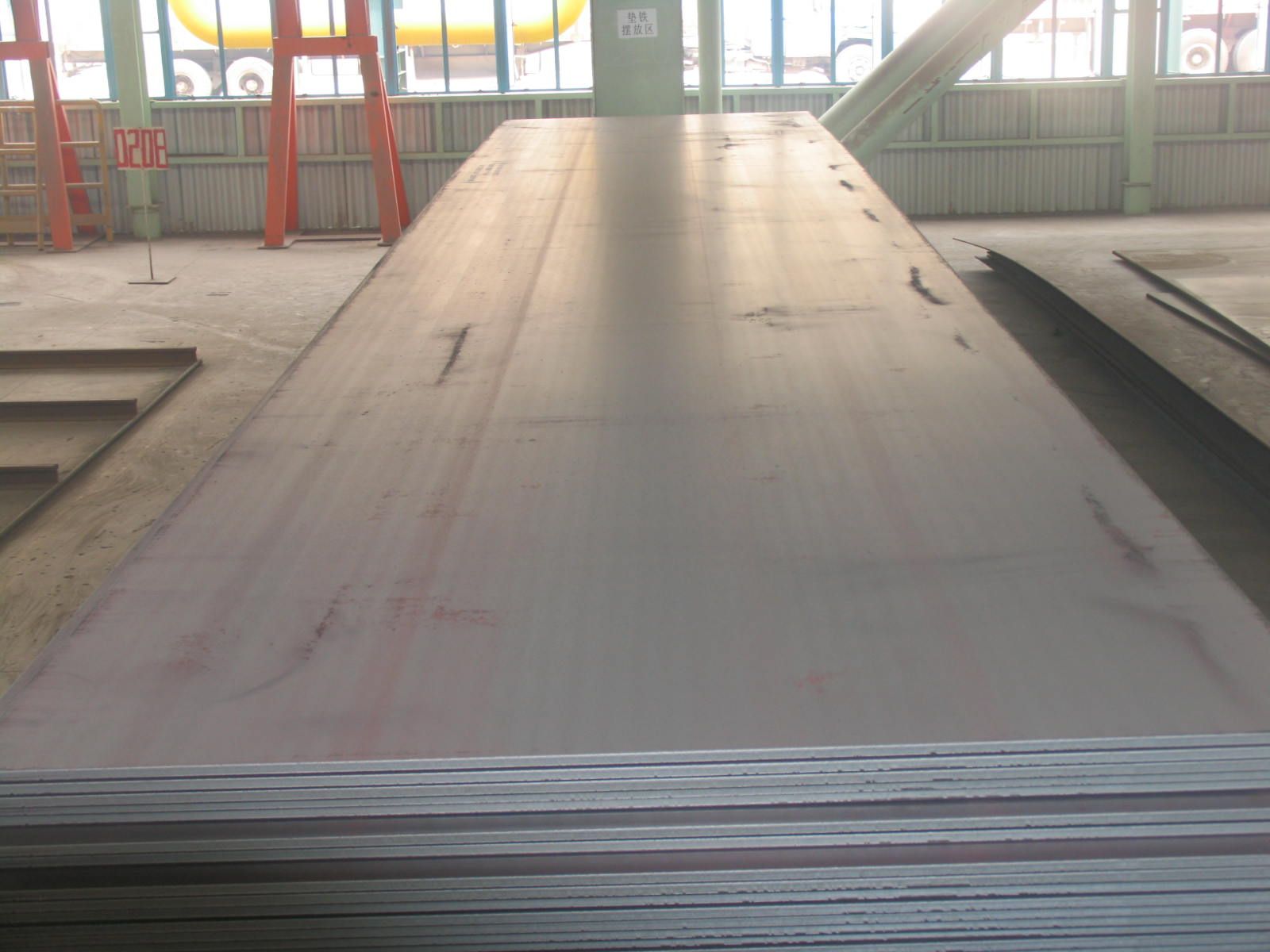

Boiler steel plate SA302 Grade C,ASME SA302/SA302M Gr C
ASME SA302 Grade C steel plate grade specification covers molybdenum alloy, intended particularly of welded boilers and others pressure vessels steel plate,This kind of steel is widely used to build boilers and pressure vessels such as petroleum, chemical industry, power plants.
Supplementary Technology: HIC Test | NACE MR0175 | Z15 | Z25 | Z35 |
mainly size we supply:>Thickness: 6MM to 300MM,Width: 1500mm to 4050mm,Length: 3000mm to 15000mm
Chemical Composition and Mechanical Property:
|
Grade |
Chemical Composition(%) |
||||
|
C |
Mn≥ |
Si |
P |
S |
|
|
SA302 Grade C(SA302GRC) |
0.20 |
1.07-1.62 |
0.13-0.45 |
0.035 |
0.035 |
|
Grade |
Mechanical Property |
|
|||
|
Tensile Strength(MPa) |
Yield Strength(MPa) |
% Elongation in 2 in.(50mm) min |
Impacting Test Temperature(°C) |
|
|
|
SA302 Grade C(SA302GRC) |
550-690 |
345 |
20 |
-20,40,-60 |
|
We also have a high quality logistics team who make sure the fast delivery time and shipment. If you need more stock steel plates in pressure vessel steel plate,please contact us by email or leave a message for us ,we will reply you asap!
