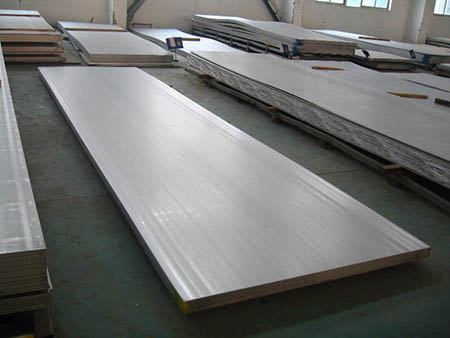

JIS G3115 SPV410,SPV410 Steel Plate,SPV410 pressure vessel steel plate

Posted:2016-01-12 00:07:46

JIS G3115 specifies the hot-rolled steel plates with improved weldability to be used for pressure vessels,equipments for high pressure service.This standard covers steel SPV235,SPV315,SPV355,SPV410,SPV450 and SPV490.SPV410 pressure vessel steel plate max tensile strength is 670Mpa. SPV410 Pressure vessel steel plate elongation is more than 12%.

SPV410 Specification we mainly supply: Thickness: 5mm to 200mm; Width: 1500mm to 3500mm: Length: 3000mm to 27000mm.We also can supply any size according to customer's request provides

SPV410 pressure vessel steel plate chemical composition


Grade
C(%) Si (%) Mn (%) P (%) S (%)
SPV410 ≤0.20 ≤0.75 ≤1.60 ≤0.030 ≤0.030

SPV410 Mechanical Property

Grade

Thicknesss

Min Yield

Tensile

Elongation

Thicknesss

SPV410

6-50mm

410Mpa(min)

550-670Mpa

<=16mm

12%

50-100mm

390Mpa(min)

550-670Mpa

>16mm

16%

100-200mm

370Mpa(min)

550-670Mpa

>40mm

18%

For more details in technical and supply information,please do not hesitate to contact us,and we will do our best to help you!we will give you the hot rolled and cold rolled SPV410 competitive price, hot rolled and cold rolled SPV410good quality and best service from us.
