JIS3125 SPAH steel plate,JIS G3125 SPA-H Hot Rolled Atmospheric resistance Steel

Posted:2016-06-16 04:20:58

SPA-H STEEL is hot rolled steel for Superior Atmospheric Corrosion resistance in the form of plates, sheets & strips for corrosion resistance application. SPA-H steel is a material grade and designation defined in JIS G3125 standard.

SPA-H Chemical composition % of the Product analysis of grade

SPA-H Chemical Composition from Type 1

Grade

SPA-H The Element Max (%)

SPA-H

C

Si

Mn

P

S

0.12

0.20-0.75

0.60

0.070-0.150

0.035

Cu

Cr

Ni

0.25-0.55

0.30-1.25

0.65

SPA-H Mechanical Property

According to En 10027-2

Thickness(mm)

Min Yield (Mpa)

Tensile(MPa)

Elongation (%)

SPA-H

6.0

355

490

22

6.0

355

490

15

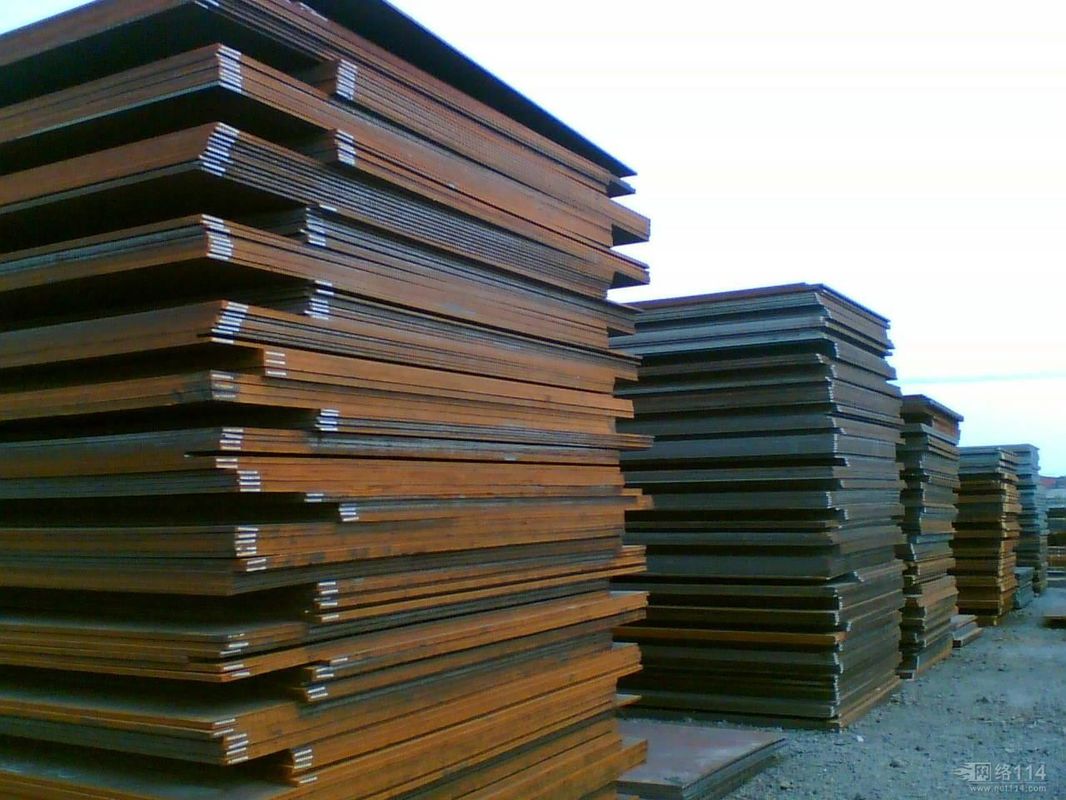

JIS3125 SPAH steel plate

products size we mainly supply:

Square bar:
Size: 50mm * 50mm-600mm *600mm

Plate steel/flat bar:
Size: Thickness: 0.1mm-800mm Width: 10mm to 1500mm

Tube/pipe:
Size: OD: 6-219mm WT: 1-35 mm.

Cold-rolled sheet: Thickness: 2-5mm Width:1000mm Length: 2000mm

Hot-rolled sheet: Thickness:6-80mm Width: 210-610mm

Length: We can supply any length based on the customer's requirement.

we keeps more than 1,000 tons hot rolled and cold rolled SPA-H steel in stock each month. Based on these stock source, our advantage industry spread into steel process like : cutting ( any size and any shape ) drilling, welding, milling, machining and steel structure.We also have a high quality logistics team who make sure the fast delivery time and shipment. We will give you the hot rolled and cold rolled SPA-H competitive price, hot rolled and cold rolled SPA-H good quality and best service from us.
