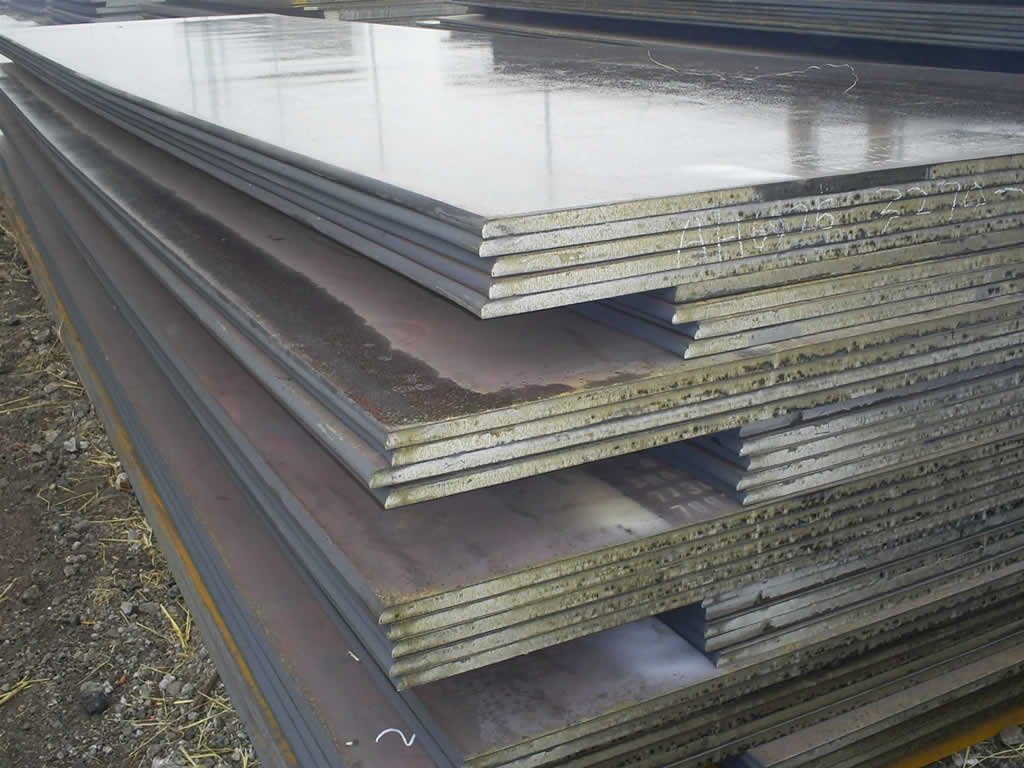

SA285 Grade A Boiler steel plate,SA285 Gr.A STEEL PLATE
ASME SA285 standard specification for pressure vessel plates, carbon steel, low- and intermediate-tensile strength.shanghai katalor is specialized in supplying ASTM A285 steel plate in A285 grade A.ASME SA285 Grade A are used to build boilers and pressure vessels such as petroleum, chemical industry, power plants.
SA285 grade A Chemical Composition
|
SA285 grade A Chemical Composition |
|||||
|
Grade |
The Element Max (%) |
||||
|
C |
Si |
Mn |
P |
S |
|
|
SA285 grade A |
0.17 |
0.08-0.45 |
0.98 |
0.035 |
0.035 |
Carbon Equivalent: Ceq = 【C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15】%
Equivalent steel grade of SA285 grade A
|
Equivalent steel grade of SA285 grade A |
|||||||
|
Europe |
British |
Germany |
Spain |
Italy |
Sweden |
India |
Japan |
|
P235GH |
161 Gr.360/164 Gr.360 |
HI |
A 37 RCI |
Fe 60-1KW |
|
|
SPV 24 |
steel size we mainly supply: Thickness: 6MM to 300MM,Width: 1500mm to 4050mm,Length: 3000mm to 15000mm .At the same time ,we can supply other size as our ustomers' needs.
As Professional in steel knowledge for guanrantee steel property, we can give you the best price,If you need more stock steel plates in SA285 Gr.A pressure vessel steel plate ,please contact us freely by email or chat with our liveperson!
