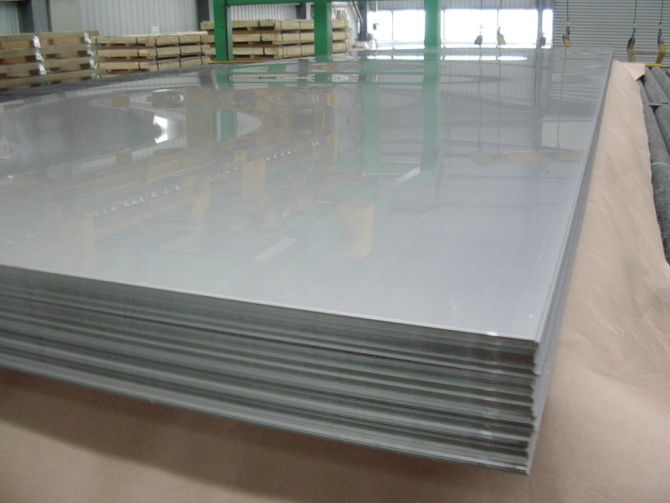

SA387 Grade 11 Class2 ,SA387 Steel Plate for use in Boilers and Pressure
SA 387 Grade 11 Class 2 Steel Plate supplied by us are accepted by clients in various spheres of the industries ranging from basic industries.ASME SA387 Grade 11 Class 2 is used in a variety of industries and is highly effective, particularly in the oil, gas and petrochemical industry, where liquids and gases are often stored at higher temperatures.
STEEL DIMENSION WE MAINLY SUPPLY:Thickness: 6MM to 300MM,Width: 1500mm to 4050mm,Length: 3000mm to 15000mm
A387 Gr.11 CL.2Chemical Composition
|
A387 Gr.11 CL.2Chemical Composition |
|||||||
|
Grade |
The Element Max (%) |
||||||
|
|
C |
Si |
Mn |
P |
S |
Cr |
Mo |
|
A387 Gr.11 Cl.2 |
0.04-0.17 |
0.44-0.86 |
0.35-0.73 |
0.035 |
0.035 |
0.94-1.56 |
0.40-0.70 |
Carbon Equivalent: Ceq = 【C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15】%
Tensile Requirements – SA/A387 Grade 11 Class 2
|
Yield MPa
|
Tensile MPa
|
Elongation (50mm)
|
Reduc’n of Area*
|
|
310 min
|
515 to 690
|
22% min
|
–
|
we are supplying SA 387 Grade 11 Class 2 Steel Plate in Iran, Saudi Arabia, United Arab Emirates, Singapore, Malaysia. etc.To find more about our services and ASME SA387 Grade 11 Class 2 steel plates,please contact us by email or chat with our liveperson,we can give you the best service!
