GB713 Q345R(R-HIC) Pressure Vessel Steel Plate Product Feature

Posted:2017-03-07 22:43:06

GB713 Q345R(R-HIC) Pressure Vessel Steel Plate Product Feature

Q345R owned the minimum yield strength at 345 Mpa for thin thickness and tensile strength above 510 Mpa. Q345R(R-HIC) Boiler and pressure vessel with the main purpose of the board, and it is widely applies in petroleum, chemical industry, power plant, boiler。

Key Words: GB713 Q345R Boiler steel plate, GB713 Q345R Pressure Vessel Steel plate, GB713 Q345R Storage Tanks Steel plate. GB713 Q345R Heat Exchanger Steel Plate.

GB713 Q345R(R-HIC) Chemical Composition and Mechanical Property:

Grade

Chemical Composition (%)

C

Mn≥

Si

P

S

GB713 Q345R

0.20

1.20-1.60

0.55

0.025

0.015

Grade

Mechanical Property

Tensile Strength(MPa)

Yield Strength(MPa)

% Elongation in 2 in.(50mm) min

Impacting Test Temperature(°C)

GB713 Q345R

510-640

345

21

0

Q345R(R-HIC) Pressure Vessel Steel Important Issue

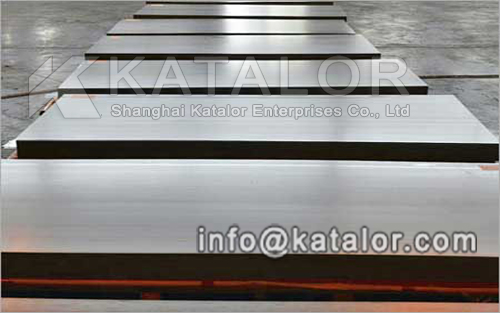

  1. Product: Boiler and Pressure Vessel Steel Plate
  2. Hardness:
    Hardened & tempering hardness: 28~34HRC
    Annealing hardness: HBS<=235
  3. Size specification:
    Thickness: 2-300MM
    Width: 1000-3000MM
    Length: 1-12m, as you request We can supply any size based on customer's requirements.
  4. Shape: Coil/ sheet / plate...
  5. Surface condition: Black surface / Grinding / Polishing / Milling / Machined...
  6. Process: EAF + LF + VD + HOT ROLLED + Heat Treatment (optional)
  7. Other Terms of Q345R(R-HIC) Steel Plate:

    ◆ Packaging Details: Standard export seaworthy packing or as required.
    ◆ Delivery Time:20-30 days, 7days for stock goods.
    ◆ Loading Port: Shanghai
    ◆ Offer Ability:6000MT/Per Month.
    ◆ MOQ:1 Pcs.

    Shanghai Katalor Enterprises Co., Ltd is specialized in supplying GB713 Q345R(R-HIC) Pressure Vessel Steel Plate. Besides that, Shanghai Katalor Enterprises Co., Ltd is also a manufacture, so we could promise the delivery time and the competitive price compared with other company. We sincerely hope new and regular customers come to visit our mill and inquiry GB713 Q345R(R-HIC) from Katalor.
